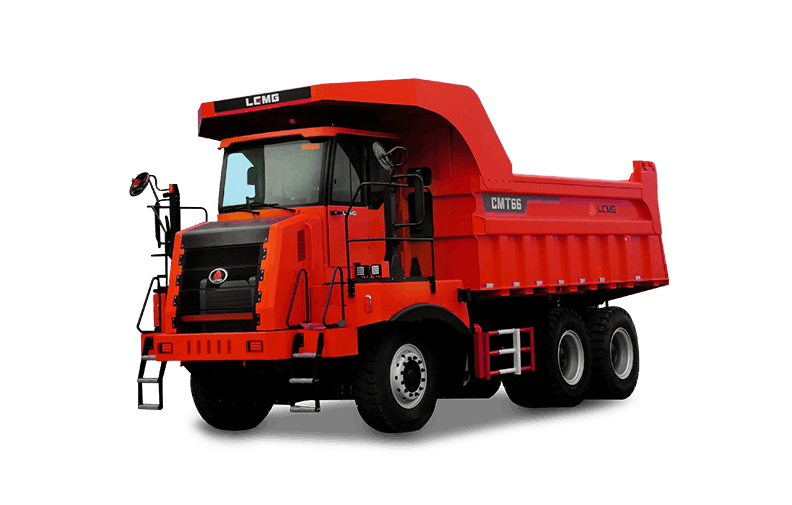

| Model | CMT66 |
|---|---|
| Weight&Size | |
| Loading capicity | 50000(kg) |
| Curb weight | 28500(kg) |
| Total weight | 78500(kg) |
| Overall dimension | 9160x3730x4200(mm) |
| Engine | |
| Model | WEICHAI WP12G460E310 |
| Power | 460(hp) |
| Transmission | |
| Model | FAST&CAT FC6A210 |
| Axle | |
| Front & Rear | 18+25+25(t) |
| Tire | |
| Type | 14.00-25/14.00R25 |
| Standard Container volume | |
| Struck/Heaped | 23.5/28.5(m³) |
| Performance | |
| Max Speed Unladen/Laden | 44/44(km/h) |
| Max.Gradeability | 30% |
| Min.Turning Diameter | 24(m) |
| Min.Ground Clearance | 340(mm) |
