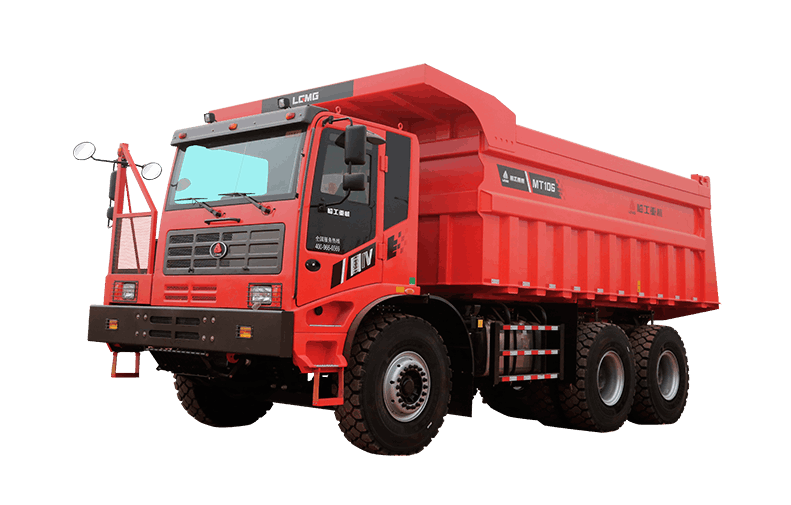

| Model | MT106 |
|---|---|
| Weight&Size | |
| Loading capicity | 70000(kg) |
| Curb weight | 35600(kg) |
| Total weight | 105600(kg) |
| Overall dimension | 9440×3740×4130(mm) |
| Engine | |
| Model | WEICHAI WP12G530E310 |
| Transmission | |
| Model | FAST 8DS240A/LG8M280S |
| Axle | |
| Front & Rear | 25+40+40(t) |
| Tire | |
| Type | 16.00R25 |
| Standard Container volume | |
| Struck/Heaped | 36-39.5/43.5-47.5(m³) |
| Performance | |
| Max Speed Unladen/Laden | 39.5/47.5(km/h) |
| Max.Gradeability | 30% |
| Min.Turning Diameter | 24(m) |
| Min.Ground Clearance | 370(mm) |
