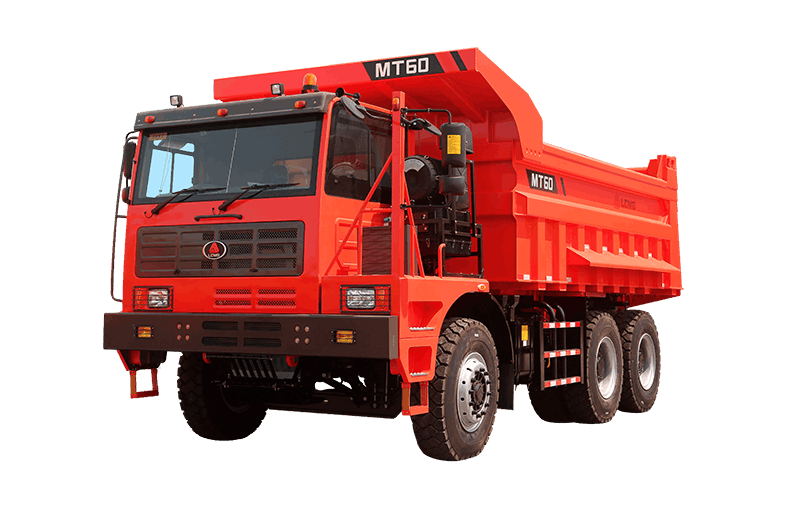

| Model | MT60 |
|---|---|
| Weight&Size | |
| Loading capicity | 50000(kg) |
| Curb weight | 26000(kg) |
| Total weight | 76200(kg) |
| Overall dimension | 8750×3450×4060(mm) |
| Engine | |
| Model | WEICHAI WP12G430E310 |
| Transmission | |
| Model | FAST 7DS200 |
| Axle | |
| Front & Rear | 18+25+25(t) |
| Tire | |
| Type | 14.00R25 |
| Standard Container volume | |
| Struck/Heaped | 26/31.5(m³) |
| Performance | |
| Max Speed Unladen/Laden | 40/40(km/h) |
| Max.Gradeability | 30% |
| Min.Turning Diameter | 22(m) |
| Min.Ground Clearance | 362(mm) |
